Sling Saddles

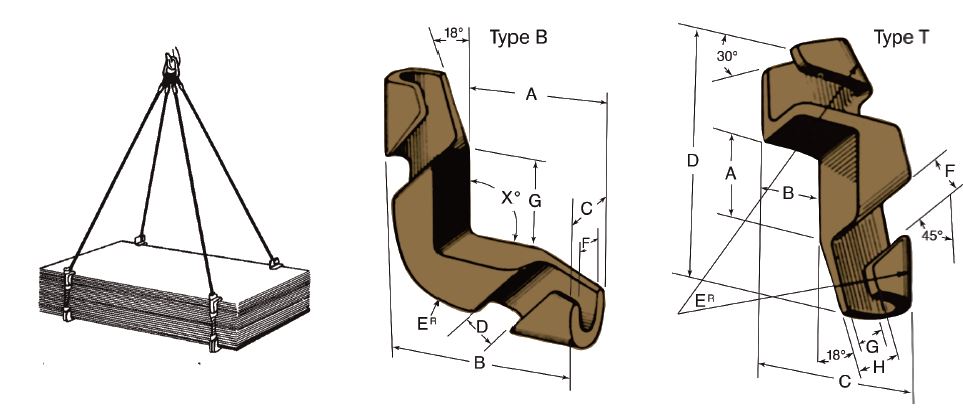

Newco Sling Saddles (type B & T) will protect wire rope slings from being cut or severely damaged when rigged around square corner loads, and will aid in protecting the loads themselves. These can be moved or adjusted by hand for various sizes of loads; and are made from manganese bronze alloy.
Type B- Bottom
| Stock No. | Rope Size | A | B | C | D | E | F | G | X° | WT. LBS. |
|---|---|---|---|---|---|---|---|---|---|---|
| RSP-5B | 3/8 | 2-1/8 | 3 | 7/8 | 7/16 | 1-3/16 | 7/16 | 1-1/4 | 90° | 1/2 |
| RSP-5.5B | 1/2 | 3-1/16 | 4-1/2 | 1-3/16 | 5/8 | 1-5/8 | 5/8 | 1-7/8 | 90° | 1-1/2 |
| RSP-6B | 5/8 | 3-7/16 | 5 | 1-5/16 | 3/4 | 1-3/4 | 3/4 | 2 | 90° | 1-3/4 |
| RSP-7B | 3/4 | 4-9/32 | 6-1/4 | 1-1/2 | 15/16 | 2-3/16 | 15/16 | 2-5/8 | 90° | 3 |
| RSP-9B | 7/8 & 1 | 5-1/8 | 7-3/8 | 1-3/4 | 1-1/8 | 2-5/8 | 1-1/8 | 3-1/8 | 90° | 5 |
| RSP-10B | 1-1/8 & 1-1/4 | 6-1/8 | 9 | 2-1/8 | 1-3/8 | 3-1/8 | 1-5/16 | 3-3/4 | 90° | 10 |
| RSP-12B | 1-3/8 & 1-1/2 | 6-7/8 | 10-1/4 | 2-3/8 | 1-11/16 | 3-1/2 | 1-5/8 | 4-1/8 | 90° | 11 |
Type T- Top
| Stock No. | Rope Size | A | B | C | D | E | F | G | H | WT. LBS. |
|---|---|---|---|---|---|---|---|---|---|---|
| RSP-5T | 3/8 | 1-5/32 | 23/32 | 1-11/16 | 3-5/8 | 4-5/8 | 7/16 | 7/16 | 7/8 | 1/2 |
| RSP-5.5T | 1/2 | 1-7/8 | 1-3/16 | 2-9/16 | 5-5/16 | 5-3/4 | 5/8 | 5/8 | 1-3/16 | 1-1/4 |
| RSP-6T | 5/8 | 2 | 1-3/8 | 2-15/16 | 5-7/8 | 8 | 3/4 | 3/4 | 1-5/16 | 1-1/2 |
| RSP-7T | 3/4 | 2-1/2 | 1-23/32 | 3-19/32 | 7-1/2 | 10 | 15/16 | 15/16 | 1-1/2 | 2-1/2 |
| RSP-9T | 7/8 & 1 | 3 | 2-3/16 | 4-7/16 | 8-3/4 | 12 | 1-1/8 | 1-1/8 | 1-3/4 | 4-1/4 |
| RSP-10T | 1-1/8 & 1-3/4 | 3-1/2 | 2-3/8 | 5 | 10-3/8 | 14 | 1-3/8 | 1-5/16 | 2-1/8 | 7-1/2 |
| RSP-12T | 1-3/8 & 1-1/2 | 4-1/2 | 2-13/16 | 5-15/16 | 11-7/8 | 17 | 1-11/16 | 1-1/8 | 2-3/8 | 9 |
CAUTION
Newco sling saddles are rated for the full working load limit of the size wire rope they are designed for when used with 6 X 19 or 6 X 37 IWRC regular lay ropes.
